型號: CK811,CK812, CK813...
口徑: DN15 - DN500
壓力: PN16-PN40
材質: LCB, GS-C25(WCB), CF8,CF8M
使用溫度: -38 to 425 C
應用介質: 導熱油，高溫蒸汽，熔鹽，冷熱水等
設計規范：
設計制造：GB/T 12235， DIN EN 13709:2003
結構長度：GB/T 12221, DIN EN 558-1
連接尺寸：HG/T 20592, DIN EN 1092-1
壓力-溫度： GB/T 9131 ASME B16.34 HG 20592
試驗-檢驗： GB/T13927 GB/T 9092 API 598
氦質譜檢漏：API 602 MSS SP-117
應用：適用于精確控制氣體、液體等介質工藝參數如壓力、流量、溫度、液位保持在給定值。特別適用于泄漏量要求高的場合。
設計特點：
1：流體通道呈S流線型、壓降損失小，允許壓差大，噪音小，符合環保要求。
2：氣動單座閥可調范圍大，固有可調比為50。
3：活塞式薄膜外形的執行器更適宜高頻繁的工作，壽命測試為100000次。

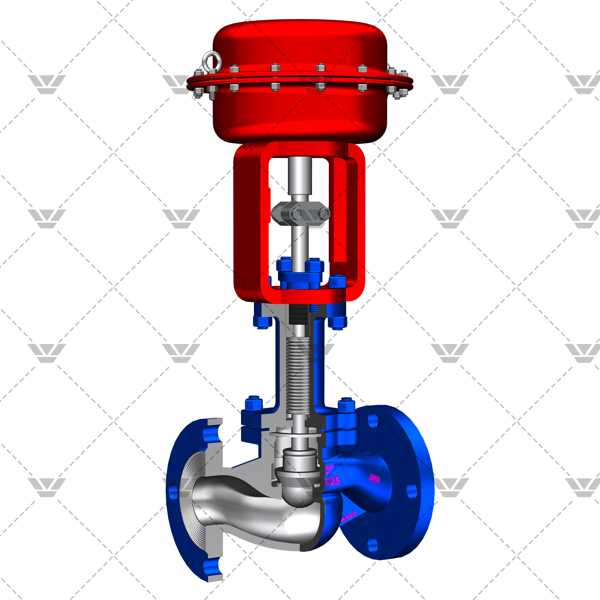

4：獨有波紋管密封，提高使用壽命，并確保流量特性良好。
執行器：電動，薄膜型氣動，活塞型氣動
選配：限位開關，過濾器，電磁閥，應急手輪
Application: Suitable for precise control of gas, liquid and other media process parameters such as pressure,flow, temperature, level at a given value. Particularly suitable for leakageswhere a high level of leakage is required.
Design features:
1: fluid channel is S streamline, small pressure drop loss, allowable differential pressure, low noise, in line with environmental requirements.
2: Pneumatic single seat valve adjustable range, inherent adjustable ratio of 50.
3: Piston type film shape actuator is more suitable for high frequency work,life test is 100000 times.

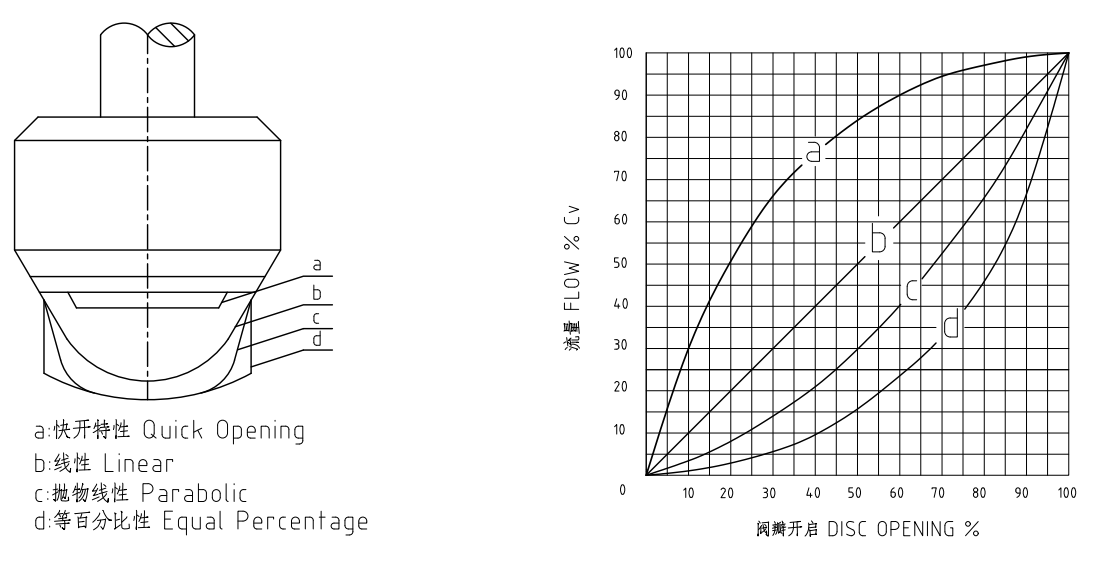

4: Exclusive bellows seal to improve service life and ensure good flow characteristics.
Actuators: electric, diaphragm type pneumatic, piston type pneumatic
Options: limit switches, filters, solenoid valves, emergency handwheels
