型號: FK211,FK212,FK213...
口徑: DN15-DN50, 1/2" to 2"
壓力: PN16-PN160, 150LB to 1500LB
材質: LF2, A105, F304,F321,F316,F316L...
使用溫度: -38-425°C
性能優勢Performance advangate

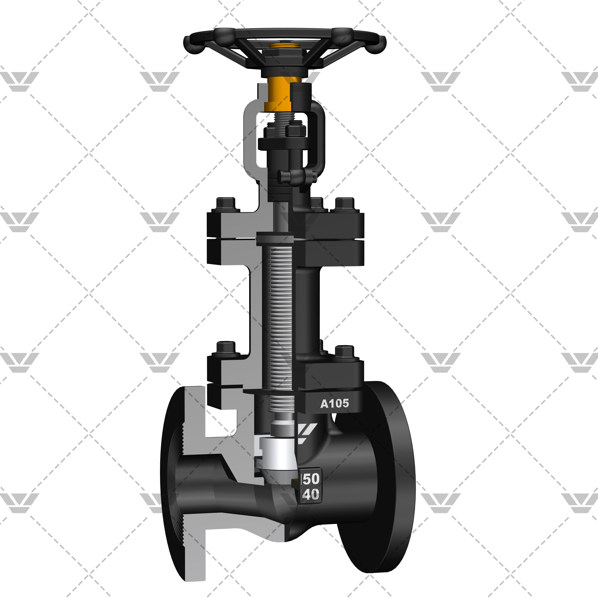

1. 波紋管是波紋管閥門的關鍵組件，采用自動滾焊，焊在閥瓣與閥桿上，確保閥桿部件100%零泄露。
Bellow is the key part of bellow sealed valves,which is welded to both the valve bonnet and valve stem, with automatic roll welding. The metal bellow can keep the stem part 100% no leakage.
2. 雙密封設計（波紋管+填料), 波紋管形成第一道,金屬密封防止泄漏，如果波紋管失效，填料可以提供第二道密封。
Double seal design(bellows+packing). Bellow form a metal seal to prevent leakage, and packing can provide seal if the bellow failed.
結構特征Structure features:
螺栓閥蓋Bolt bonnet(BB) ,
焊接閥蓋Welded bonnet (WB)
明桿支架型Outside screw and yoke(OS&Y)
技術規范TECHNICAL SPECIFICATION
設計標準Design standard: API 602; MSS-SP-117
連接端Connection ends:
(1) 承插焊Socket welded end: ANSI B16.11
(2) 螺紋Screw end: ANSI B1.20.1
(3) 對焊 Butt-welded end: ANSI B16.25
(4) 法蘭Flange end: ANSI B16.5, HG/T 20592
結構長度Face to face dimension: ASME B16.10
連接法蘭Flanged ends: ASME B16.5
對焊連接Welded ends: ASME B16.25
試驗與檢驗Test & inspection: GB/T13927 GB/T 9092 API 598
應用APPLICATION
熱油系統、蒸汽系統、冷熱水系統等等
Thermal oil system, steam system, hot and cold water system etc.
